ISO 27001 A.8.20: Network Security

Quick Reference (60 Seconds)

Bottom Line: Your network is the backbone of your digital infrastructure, and the primary target of attackers. A.8.20 requires organizations to design, implement, and maintain secure networks that prevent unauthorized access, contain breaches, and ensure availability. Without proper network security, a single compromised endpoint can lead to a complete organizational breach.

What the Standard Actually Requires

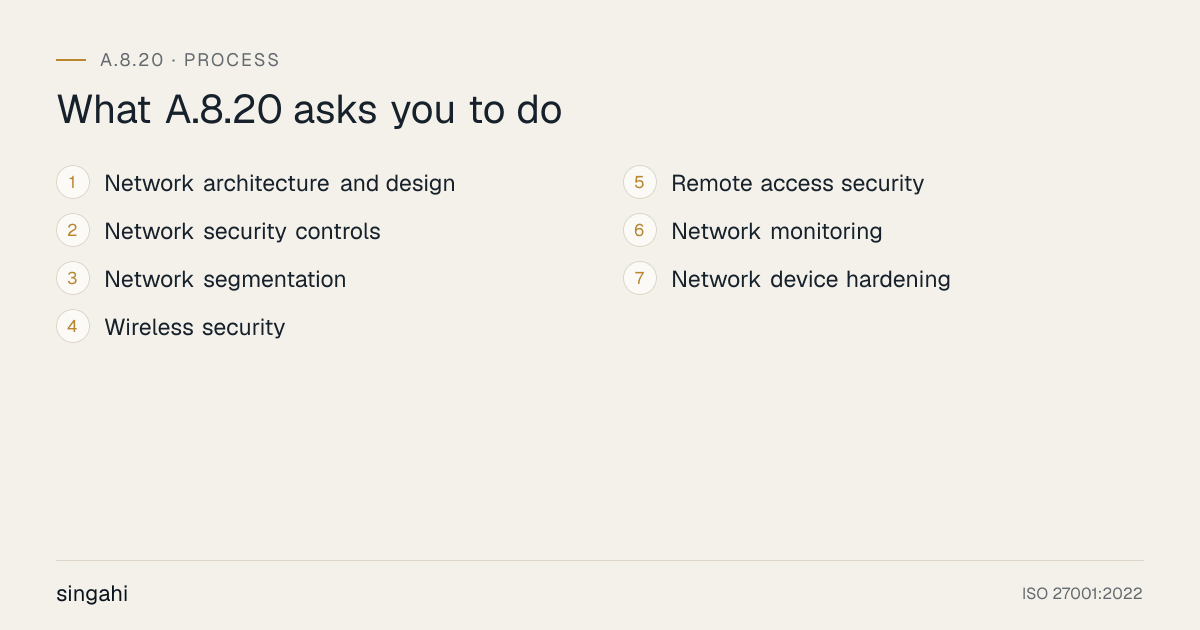

Figure · Process

What A.8.20 asks you to do

ISO 27001:2022 Annex A.8.20 states:

ISO 27001:2022 Annex A 8.20 asks organizations to secure and manage networks and network devices so data moving through systems and applications stays protected.

ISO 27002:2022 expands this into practical guidance covering:

1. Network architecture and design, Networks should be designed with security in mind, including segmentation and defense in depth
2. Network security controls, Firewalls, intrusion detection/prevention systems (IDS/IPS), and other security controls should be deployed at network boundaries
3. Network segmentation, Networks should be segmented to isolate sensitive systems and contain breaches (also see A.8.22)
4. Wireless security, Wireless networks should be secured with strong authentication and encryption
5. Remote access security, Remote access to the network should be controlled and encrypted
6. Network monitoring, Networks should be monitored for anomalies, unauthorized access, and attacks
7. Network device hardening, Routers, switches, and other network devices should be hardened against attacks
8. Network documentation, Network topology, configurations, and security controls should be documented
9. Change control, Network changes should be controlled and approved
10. Third-party connections, Connections to third-party networks should be controlled and monitored

Why Network Security Matters

The Network Threat Landscape

Your network is the primary attack surface. Every system, application, and user connects through the network. Attackers target networks to gain initial access, move laterally, exfiltrate data, and disrupt operations. The most damaging breaches, ransomware, data theft, espionage, all rely on network access.

Key Statistics

• 95% of breaches involve network-based attacks (Verizon DBIR)
• 70% of organizations have experienced a network intrusion in the past year (Ponemon Institute)
• Ransomware spreads through network lateral movement in 80% of cases (CISA)
• Internal threats account for 30% of network incidents (Gartner)
• India ranks 2nd globally in targeted network attacks (Symantec)
• Average impact of a data breach in India is (IBM Security)
• Network downtime overhead Indian enterprises –per hour (Gartner)
• CERT-In reports 2,000+ network intrusion incidents annually in India
• RBI mandates network segmentation and monitoring for all banking systems
• PCI DSS requires network segmentation and firewall controls for cardholder data environments

Real-World Consequences

• A Mumbai NBFC (2024): Had a flat network with no segmentation. A phishing email compromised one HR workstation. The attacker moved laterally through the network, reaching the core banking server within 4 hours. The attacker encrypted all customer loan records with ransomware and demanded . The NBFC had no network segmentation, no IDS, and no lateral movement detection. RBI imposed a penalty of and restricted the NBFC from onboarding new customers for 6 months.
• A Delhi hospital (2023): Had a wireless network with WPA2-PSK and a shared password posted on the reception desk. An attacker connected to the Wi-Fi, scanned the network, and found the hospital's PACS server on the same subnet as the guest Wi-Fi. The attacker encrypted all medical images with ransomware. The hospital had no wireless segmentation, no guest isolation, and no network monitoring. The incident was reported to the National Human Rights Commission and caused a 2-week disruption in diagnostic services.
• A Bangalore SaaS company (2024): Had a cloud VPC with overly permissive security groups (0.0.0.0/0 access to SSH and database ports). An attacker scanned the internet, found the open ports, and brute-forced the SSH credentials. The attacker gained access to the database containing 500,000 customer records, exfiltrated the data, and sold it on the dark web. The company had no network access controls, no VPC segmentation, and no cloud security monitoring. The company faced GDPR fines from EU customers and lost 40% of its revenue.
• A Chennai manufacturing plant (2023): Had the OT network (SCADA, PLCs) connected to the IT network with no segmentation. An attacker compromised an IT workstation via phishing, moved laterally to the OT network, and modified PLC configurations to alter production parameters. The result was 10,000 defective components shipped to an automotive OEM, causing a recall. The plant had no OT-IT segmentation, no industrial IDS, and no network monitoring. The production loss and recall overhead .
• A government department in India (2024): Had a VPN for remote employees with no MFA and split tunneling enabled. An attacker compromised a remote employee's home network, accessed the VPN, and used the split tunneling to bridge the government network to the internet. The attacker exfiltrated citizen data for 2 months before detection. The department had no VPN hardening, no MFA, and no remote access monitoring. MeitY required a complete network security overhaul.

Regulatory and Business Drivers

• RBI Cyber Security Framework mandates network segmentation, firewalls, and monitoring for banking systems
• SEBI Cybersecurity Circular requires network controls for trading systems and market infrastructure
• PCI DSS v4.0 Requirements 1.x and 2.x require network segmentation, firewall controls, and secure protocols
• CERT-In Guidelines recommend network segmentation, IDS/IPS, and monitoring for critical infrastructure
• IT Act 2000 requires reasonable security practices including network controls for sensitive data
• DPDP Act 2023 requires data fiduciaries to protect systems, including network security
• ISO 27001 requires A.8.20 as part of the ISMS
• SOC 2 requires network controls as part of system operations (CC6.1, CC6.6, CC6.7)
• Cyber Insurance increasingly requires network segmentation and monitoring as a condition of coverage
• Business continuity requires network availability and integrity

Scope and Applicability

What Is Covered

• Network architecture and design: LAN, WAN, WLAN, VLAN, VPN, cloud networks (VPC, VNet), SD-WAN, OT networks, ICS networks, SCADA networks
• Network security controls: Firewalls (perimeter, internal, host-based, cloud-native), IDS/IPS, NAC, WAF, DDoS protection, email security gateways, DNS security
• Network segmentation: VLANs, subnets, micro-segmentation, zero-trust network architecture, OT-IT segmentation
• Wireless networks: Wi-Fi (802.11a/b/g/n/ac/ax/6E/7), Bluetooth, cellular (4G/5G), IoT wireless protocols (Zigbee, LoRaWAN, Z-Wave)
• Remote access: VPN (IPsec, SSL/TLS, WireGuard), Zero Trust Network Access (ZTNA), remote desktop gateways, bastion hosts, jump boxes
• Network device hardening: Routers, switches, firewalls, load balancers, wireless access points, VPN concentrators, SD-WAN appliances, cloud networking components
• Network protocols: TCP/IP, DNS, DHCP, BGP, OSPF, MPLS, IPv6, HTTP/HTTPS, SSH, TLS, IPsec, SMTP, SNMP, NTP, LDAP, Kerberos, RADIUS, TACACS+
• Network monitoring: NetFlow, sFlow, packet capture, network performance monitoring (NPM), network detection and response (NDR)
• Third-party connections: Vendor VPNs, partner networks, cloud service provider connections, MPLS links, internet peering
• Cloud networking: VPC, security groups, network ACLs, cloud firewalls, transit gateways, cloud WAN, service meshes, API gateways
• Container networking: Kubernetes network policies, CNI plugins, service meshes (Istio, Linkerd), container network segmentation

Applicability by Organization Type

Key Definitions

Relationship to Other Controls

Implementation Roadmap

Phase 1: Assessment and Architecture Design (Weeks 1–2)

• Week 1: Network discovery and mapping. Use tools (Nmap, Open-AudIT, Lansweeper, cloud-native discovery) to map all network segments, devices, and connections. Create a current-state network topology diagram.
• Week 2: Risk assessment and target architecture design. Identify high-risk areas (flat networks, open ports, weak wireless, missing segmentation). Design a secure target network architecture with segmentation, firewall placement, and monitoring points.
• Deliverables: Current network topology, risk assessment report, target network architecture design

Phase 2: Core Security Controls (Weeks 3–6)

• Week 3: Firewall deployment and hardening. Deploy or configure perimeter firewalls, internal firewalls, and cloud-native firewalls (security groups, network ACLs). Implement default-deny policies with explicit allow rules.
• Week 4: Network segmentation implementation. Create VLANs/subnets for different trust zones (guest, corporate, servers, databases, management, OT). Implement inter-VLAN routing with firewall inspection.
• Week 5: IDS/IPS deployment. Deploy network-based IDS/IPS (Suricata, Snort, commercial NDR) at critical network segments. Configure signature-based and anomaly-based detection.
• Week 6: Network device hardening. Harden all routers, switches, and firewalls: disable unused services, enforce strong passwords, enable SSH with key-based auth, disable Telnet/SNMPv1, enable logging, configure NTP, implement management VLAN isolation.
• Deliverables: Hardened firewalls, segmented network, IDS/IPS deployed, hardened network devices

Phase 3: Advanced Controls (Weeks 7–10)

• Week 7: Wireless security hardening. Deploy WPA3-Enterprise (or WPA2-Enterprise with strong crypto), 802.1X authentication, wireless intrusion detection, guest network isolation, and RF monitoring.
• Week 8: Remote access security. Implement VPN with MFA, certificate-based authentication, split tunneling restrictions (or full tunneling), session timeouts, and client posture checks. Consider ZTNA for modern remote access.
• Week 9: NAC deployment. Deploy Network Access Control to enforce device compliance (antivirus, patches, certificate) before granting network access. Implement 802.1X on wired and wireless ports.
• Week 10: Cloud network security. Implement VPC security groups, network ACLs, cloud-native firewalls (AWS Network Firewall, Azure Firewall, GCP Firewall), transit gateway security, and cloud WAN security.
• Deliverables: Secure wireless, hardened remote access, NAC deployed, cloud network secured

Phase 4: Monitoring and Optimization (Weeks 11–14)

• Week 11: Network monitoring deployment. Deploy NetFlow/sFlow collectors, network performance monitoring, and integrate network logs with SIEM. Configure alerts for anomalies.
• Week 12: NDR/NTA deployment. Deploy Network Detection and Response (NDR) or Network Traffic Analysis (NTA) for advanced threat detection using behavioral analysis and machine learning.
• Week 13: Testing and validation. Conduct penetration testing, vulnerability scanning of network devices, and firewall rule review. Validate segmentation effectiveness with lateral movement testing.
• Week 14: Documentation and training. Document all network configurations, security policies, and procedures. Train network administrators and IT staff.
• Deliverables: Network monitoring, NDR deployed, tested and validated network, complete documentation

Ongoing: Operations and Improvement

• Monthly: Review firewall logs, IDS/IPS alerts, and network anomaly reports. Update firewall rules and IDS signatures.
• Quarterly: Network vulnerability scans, penetration testing, firewall rule audit, wireless security assessment, third-party connection review
• Annually: Full network architecture review, network security policy review, disaster recovery testing, business continuity validation

Detailed Implementation Guidance

Network Architecture and Design

Objective: Design a secure network architecture that implements defense in depth, least privilege, and segmentation.

Principles:

1. Defense in Depth: Multiple layers of security controls so that if one fails, others remain
2. Least Privilege: Network access should be limited to what is strictly necessary
3. Segmentation: Isolate systems based on sensitivity, function, and trust level
4. Zero Trust: Never trust, always verify, regardless of network location
5. Simplicity: Complex networks are harder to secure and troubleshoot

Architecture Layers:

• Perimeter Layer: Internet-facing firewalls, DDoS protection, WAF, email security gateways, DNS security
• DMZ Layer: Externally-facing services (web servers, mail servers, DNS) isolated from internal networks
• Internal Layer: Corporate network, segmented by department or function
• Sensitive Systems Layer: Databases, core applications, domain controllers, critical servers, highest security
• Management Layer: Out-of-band management network for network devices, separate from production traffic
• OT/ICS Layer: Industrial control systems, isolated from IT networks (see A.8.22)
• Cloud Layer: VPCs, VNets, cloud resources with cloud-native security controls

Indian Context: Many Indian organizations started with flat networks and are now transitioning to segmented architectures. A phased approach is recommended: start with separating servers from workstations, then add guest network isolation, then implement departmental VLANs, and finally add micro-segmentation for critical assets. This minimizes disruption while progressively improving security.

Firewall Deployment and Management

Objective: Deploy and maintain firewalls that enforce security policies at network boundaries.

Types of Firewalls:

• Perimeter Firewall: Between internet and internal network (or DMZ)
• Internal Firewall: Between internal network segments (e.g., corporate and servers)
• Host-Based Firewall: On individual systems (Windows Firewall, iptables, firewalld)
• Cloud-Native Firewall: AWS Network Firewall, Azure Firewall, GCP Firewall, NSX Distributed Firewall
• Web Application Firewall (WAF): Protects web applications from HTTP-based attacks
• Next-Generation Firewall (NGFW): Combines traditional firewall with IPS, application control, URL filtering, and threat intelligence

Firewall Rules Best Practices:

1. Default Deny: Block all traffic by default; explicitly allow only required traffic
2. Least Privilege: Allow only specific source/destination IPs, ports, and protocols
3. Rule Order: Place most specific rules before general rules
4. Logging: Log all denied traffic and allowed traffic to sensitive zones
5. Regular Review: Review firewall rules quarterly; remove unused or redundant rules
6. Change Control: All firewall changes require approval and documentation
7. Segmentation: Use firewalls between network segments, not just at the perimeter

Example Firewall Rule Set for a Database Server:

## Allow application servers to access database on port 5432
allow tcp from 10.1.10.0/24 to 10.1.50.10 port 5432

## Allow backup server to access database on port 5432
allow tcp from 10.1.20.10 to 10.1.50.10 port 5432

## Allow management network to access database on SSH port 22
allow tcp from 10.1.100.0/24 to 10.1.50.10 port 22

## Deny all other traffic to database server
deny all to 10.1.50.10

## Log all denied attempts
log deny all to 10.1.50.10

Tools: Palo Alto, Fortinet, Cisco ASA/FTD, Juniper SRX, Check Point, Sophos, pfSense, OPNsense, AWS Network Firewall, Azure Firewall, GCP Firewall, NSX Distributed Firewall, iptables, nftables, firewalld, Windows Firewall

Indian Context: Indian growing companies often use UTM devices (Sophos, Fortinet, SonicWall) that combine firewall, IDS, VPN, and antivirus in one appliance. For value-focused organizations, pfSense or OPNsense (open source) on commodity hardware provides enterprise-grade firewall capabilities at a fraction of the overhead. Cloud-native firewalls are essential for organizations with cloud workloads.

Network Segmentation

Objective: Divide the network into segments to limit lateral movement and contain breaches.

Segmentation Strategies:

1. VLAN-Based Segmentation: Create separate VLANs for different trust zones
   • Corporate VLAN (user workstations)
   • Server VLAN (application servers)
   • Database VLAN (databases, storage)
   • Management VLAN (network device management)
   • Guest VLAN (guest Wi-Fi)
   • DMZ VLAN (public-facing services)
   • OT VLAN (industrial control systems)
2. Subnet-Based Segmentation: Use IP subnets to create logical boundaries
3. Micro-segmentation: Fine-grained segmentation using software-defined networking (VMware NSX, Cisco ACI, cloud security groups) or host-based firewalls
4. Zero Trust Segmentation: Every workload is isolated; communication is explicitly allowed based on identity and policy

Implementation Steps:

1. Identify Trust Zones: Classify systems by sensitivity, function, and access requirements
2. Create VLANs/Subnets: Allocate separate VLANs and subnets for each zone
3. Implement Inter-VLAN Routing: Use Layer 3 switches or firewalls to route between VLANs with access control
4. Deploy Firewall Rules: Create explicit allow rules between segments; default deny everything else
5. Monitor East-West Traffic: Deploy IDS/IPS or NDR within segments to detect lateral movement

Indian Context: Many Indian organizations have "flat" networks where all systems are on the same subnet. This is a critical vulnerability. The first priority should be separating servers from workstations. Then add guest network isolation. For BFSI and manufacturing, OT-IT segmentation is mandatory under RBI and CERT-In guidelines.

Intrusion Detection and Prevention

Objective: Detect and prevent malicious network activity in real-time.

IDS/IPS Types:

• Network-Based IDS/IPS (NIDS/NIPS): Monitors network traffic at strategic points (e.g., between segments, at the perimeter)
• Host-Based IDS/IPS (HIDS/HIPS): Monitors individual systems for suspicious activity
• Wireless IDS/IPS (WIDS/WIPS): Monitors wireless networks for rogue access points and attacks

Deployment Strategy:

1. Perimeter NIDS: Monitor all internet-bound traffic for inbound attacks and outbound C2 traffic
2. Internal NIDS: Monitor traffic between network segments (east-west traffic) for lateral movement
3. Critical Asset NIDS: Deploy dedicated IDS for high-value segments (database, domain controllers, OT)
4. Cloud NIDS: Deploy cloud-native IDS (AWS VPC Traffic Mirroring, Azure Virtual Network TAP, GCP Packet Mirroring) or agent-based NDR

Signature-Based vs. Behavioral Detection:

• Signature-Based: Detects known threats using predefined patterns (fast, low false positives, but misses unknown threats)
• Behavioral/Anomaly-Based: Detects unusual patterns using baselines and ML (catches unknown threats, but higher false positives)
• Best Practice: Use both. Signature-based for known threats; behavioral for zero-days and advanced persistent threats.

Tools: Suricata, Snort, Zeek (formerly Bro), Cisco Firepower, Palo Alto Threat Prevention, Fortinet FortiGuard, Darktrace, Vectra AI, ExtraHop, Corelight, AWS VPC Traffic Mirroring, Azure Virtual Network TAP, GCP Packet Mirroring

Indian Context: Open-source IDS (Suricata, Snort, Zeek) with a commercial management layer (SELKS, Stamus Networks) provides enterprise-grade detection at a lower overhead. For organizations without dedicated security analysts, managed detection and response (MDR) services can operate the IDS/IPS on their behalf.

Wireless Network Security

Objective: Secure wireless networks against unauthorized access, eavesdropping, and attacks.

Best Practices:

1. Authentication:
   • Use WPA3-Enterprise (or WPA2-Enterprise with AES-CCMP) for corporate networks
   • Implement 802.1X with RADIUS for user/device authentication
   • Use certificate-based authentication (EAP-TLS) for the strongest security
   • Avoid WPA2-PSK (pre-shared key) for corporate networks; if unavoidable, use a very long (20+ character) random key and rotate it monthly
2. Encryption:
   • Use AES-CCMP (WPA2/WPA3) or GCMP-128 (WPA3)
   • Disable WEP, WPA-TKIP, and any legacy encryption
3. Guest Network:
   • Create a separate guest SSID with client isolation (users cannot see each other)
   • Use a captive portal with terms of service acceptance
   • Isolate guest traffic on a separate VLAN with no access to corporate resources
   • Rate-limit guest bandwidth to prevent abuse
4. SSID Management:
   • Do not broadcast hidden SSIDs (security through obscurity is ineffective and causes client probing)
   • Use descriptive but non-revealing SSID names (avoid "CompanyName-Finance")
5. Physical Security:
   • Position access points to minimize signal leakage outside the building
   • Use directional antennas where appropriate
   • Conduct wireless site surveys to identify rogue access points and signal coverage
6. Rogue AP Detection:
   • Deploy WIDS/WIPS to detect unauthorized access points
   • Configure automatic containment of rogue APs (if legal in your jurisdiction)
   • Monitor for evil twin attacks (rogue APs with the same SSID as your corporate network)
7. IoT and BYOD:
   • Create a separate IoT VLAN for wireless devices (printers, cameras, smart devices)
   • Implement MAC address filtering or device certificates for IoT devices
   • Use MDM to enforce Wi-Fi security policies on BYOD devices

Tools: Aruba ClearPass, Cisco ISE, Fortinet FortiAP, Ruckus, Ubiquiti UniFi, Aerohive, wireless site survey tools (Ekahau, AirMagnet)

Indian Context: Indian organizations often have open guest Wi-Fi or WPA2-PSK with weak passwords shared publicly. This is a common attack vector. The Delhi hospital case (see Section 3) is a textbook example. Implementing 802.1X with RADIUS may seem complex, but freeRADIUS (open source) and Windows NPS provide enterprise authentication at lightweight.

Remote Access Security

Objective: Secure remote access to the corporate network from any location.

Remote Access Methods:

1. VPN (Traditional):
   • IPsec VPN: Site-to-site and client-to-site tunnels with strong crypto (AES-256, SHA-256, DH Group 14+)
   • SSL/TLS VPN: Clientless or thin-client access via web browser (more convenient, but monitor for web-based attacks)
   • WireGuard: Modern, lightweight VPN protocol with strong cryptography and high performance
2. Zero Trust Network Access (ZTNA):
   • No implicit trust based on network location
   • Access granted based on identity, device health, and context
   • Micro-tunnels to specific applications, not full network access
   • Continuous verification and session monitoring
3. Remote Desktop Gateway:
   • Secure gateway for RDP/SSH access to internal systems
   • MFA required, session recording, access limited to specific systems
4. Bastion Host / Jump Box:
   • Hardened server that provides controlled access to internal networks
   • All administrative access must go through the bastion host
   • Session recording, command logging, MFA required

Best Practices:

1. Multi-Factor Authentication (MFA): Mandatory for all remote access, regardless of method
2. Full Tunneling: Route all remote traffic through the corporate network to ensure inspection and prevent split tunneling risks
3. Client Posture Checks: Verify that remote devices have updated antivirus, patches, and encryption before granting access
4. Session Timeouts: Automatically disconnect idle sessions after 15–30 minutes
5. Concurrent Session Limits: Limit the number of simultaneous sessions per user
6. IP Whitelisting: Restrict VPN access to specific IP ranges where possible (e.g., home ISP ranges, known locations)
7. No Direct RDP/SSH from Internet: Never expose RDP (port 3389) or SSH (port 22) directly to the internet. Use VPN or bastion hosts.
8. Monitoring and Logging: Log all remote access sessions, commands executed, and files transferred. Integrate with SIEM.

Tools: Palo Alto GlobalProtect, Cisco AnyConnect, Fortinet FortiClient, Pulse Secure, WireGuard, OpenVPN, Zscaler Private Access, Cloudflare Access, Microsoft Azure AD Application Proxy, AWS Client VPN, Google Cloud IAP, Teleport, StrongDM, BastionZero

Indian Context: Post-pandemic, remote work is permanent for many Indian organizations. However, many still rely on basic VPNs without MFA or client posture checks. The government department case (see Section 3) demonstrates the risk of weak VPNs. Implementing ZTNA (e.g., Cloudflare Access, Microsoft Azure AD Application Proxy) is often more efficient and secure than traditional VPNs for cloud-first organizations.

Network Device Hardening

Objective: Secure routers, switches, firewalls, and other network devices against compromise.

Hardening Checklist:

1. Physical Security:
   • Lock network devices in secure racks or rooms
   • Restrict physical access to authorized personnel only
   • Use tamper-evident seals on critical devices
2. Access Control:
   • Disable default accounts (admin, root, cisco, etc.)
   • Enforce strong, unique passwords for each device
   • Use role-based access control (RBAC) for device administration
   • Implement centralized authentication (RADIUS/TACACS+) with MFA
   • Disable console access if not needed; if needed, require authentication
3. Management Security:
   • Use out-of-band management network (separate VLAN) for device administration
   • Disable in-band management (Telnet, HTTP, SNMP v1/v2c), use SSH (v2) and HTTPS only
   • Disable unused ports and services
   • Implement management access lists (ACLs) restricting admin access to specific IPs
4. Encryption:
   • Use SSH v2 for CLI access (disable Telnet)
   • Use HTTPS for web management (disable HTTP)
   • Use SNMPv3 with encryption and authentication (disable SNMPv1/v2c)
   • Encrypt all management traffic (NTP with authentication, syslog with TLS)
5. Logging:
   • Enable complete logging (configuration changes, authentication attempts, command execution)
   • Send logs to a centralized syslog server or SIEM
   • Log to a tamper-resistant storage (WORM, append-only)
   • Enable NTP for accurate timestamps (A.8.17)
6. Firmware and Patching:
   • Keep device firmware and software up to date
   • Subscribe to vendor security advisories
   • Test patches in a lab environment before production deployment
   • Verify firmware integrity before installation (hash/signature verification)
7. Configuration Backup:
   • Automate daily configuration backups to a secure, off-site location
   • Encrypt configuration backups (they contain passwords and keys)
   • Test restoration procedures quarterly
8. Switch Security:
   • Enable port security (limit MAC addresses per port, disable unused ports)
   • Enable DHCP snooping to prevent rogue DHCP servers
   • Enable Dynamic ARP Inspection (DAI) to prevent ARP spoofing
   • Enable IP Source Guard to prevent IP spoofing
   • Enable BPDU Guard to prevent unauthorized switches
   • Disable unused switch ports and assign them to a blackhole VLAN
9. Routing Security:
   • Enable BGP MD5 authentication and prefix filtering
   • Enable OSPF authentication
   • Implement route filtering and prefix lists
   • Use RPKI (Resource Public Key Infrastructure) for BGP origin validation

Tools: Cisco IOS hardening guides, Juniper hardening guides, NIST SP 800-123, Center for Internet Security (CIS) Benchmarks for network devices, Ansible, Puppet, Chef, SolarWinds NCM, ManageEngine Network Configuration Manager, Rancid, Oxidized

Indian Context: Many Indian organizations use networking equipment from multiple vendors (Cisco, Juniper, Huawei, D-Link, TP-Link). Standardize hardening using CIS Benchmarks and vendor-specific guides. For small organizations, Ansible playbooks can automate hardening across devices free.

Network Monitoring and Detection

Objective: Continuously monitor network traffic for anomalies, unauthorized access, and attacks.

Monitoring Components:

1. Flow-Based Monitoring:
   • NetFlow, sFlow, IPFIX for traffic analysis
   • Collectors: ntopng, Plixer, ManageEngine NetFlow Analyzer, Cisco Stealthwatch
   • Analyze traffic patterns, top talkers, bandwidth use, and anomalous flows
2. Packet Capture:
   • Full packet capture (FPC) for forensic analysis (high storage requirements)
   • Selective packet capture triggered by alerts
   • Tools: Wireshark, tcpdump, Moloch/Arkime, Stenographer
3. Network Performance Monitoring (NPM):
   • Monitor latency, packet loss, jitter, and bandwidth
   • Tools: SolarWinds NPM, ManageEngine OpManager, PRTG, Nagios, Zabbix, Prometheus + Grafana
4. Network Detection and Response (NDR):
   • Behavioral analysis using ML/AI to detect unknown threats
   • Tools: Darktrace, Vectra AI, ExtraHop, Corelight, Cisco Stealthwatch, Arista NDR
5. Cloud Network Monitoring:
   • AWS VPC Flow Logs, Azure NSG Flow Logs, GCP VPC Flow Logs
   • Cloud-native NDR: AWS GuardDuty, Azure Sentinel, GCP Security Command Center
   • Cloud network traffic mirroring for packet inspection

Alerting Priorities:

• Critical: DDoS attack detected, C2 communication detected, large data exfiltration, unauthorized VPN access, lateral movement to sensitive segments
• High: New device on network, port scanning, brute force attempts, suspicious DNS queries, tunneling detected
• Medium: Bandwidth anomalies, new network services, configuration changes, expired certificates
• Low: Performance degradation, routine traffic pattern changes

Indian Context: Many Indian organizations have limited network monitoring beyond basic SNMP. Deploying NetFlow/sFlow collectors (ntopng is free and excellent) provides immediate visibility into network traffic patterns. For cloud environments, VPC Flow Logs are essential and lightweight.

Cloud Network Security

Objective: Secure cloud-native networks with appropriate controls.

Cloud Network Controls:

1. VPC/VNet Design:
   • Use multiple VPCs for different environments (prod, dev, test) and business units
   • Implement VPC peering or transit gateways for controlled inter-VPC communication
   • Use private subnets for internal resources; public subnets only for internet-facing resources
   • Implement NAT gateways for outbound internet access from private subnets
2. Security Groups and NACLs:
   • Security groups are stateful firewalls at the instance level (default deny, explicit allow)
   • Network ACLs are stateless firewalls at the subnet level (default allow, explicit deny)
   • Use both for defense in depth: NACLs for broad subnet-level rules; security groups for fine-grained instance-level rules
   • Avoid overly permissive rules (0.0.0.0/0 to any port)
3. Cloud Firewalls:
   • AWS Network Firewall, AWS WAF, Azure Firewall, Azure WAF, GCP Firewall, GCP Cloud Armor
   • Deploy at VPC/VNet boundaries for centralized traffic inspection
4. Cloud WAN and SD-WAN:
   • AWS Transit Gateway, Azure Virtual WAN, GCP Cloud Interconnect
   • Secure connections between cloud and on-premise networks
5. Container Networking:
   • Kubernetes Network Policies to restrict pod-to-pod communication
   • CNI plugins with built-in security (Calico, Cilium)
   • Service meshes (Istio, Linkerd) for mTLS and traffic policies
6. Serverless Networking:
   • VPC integration for Lambda, Azure Functions, Cloud Functions
   • Private endpoints for cloud services (AWS PrivateLink, Azure Private Link, GCP Private Service Connect)

Indian Context: Indian organizations are rapidly adopting cloud (AWS, Azure, GCP, and Indian providers like JioCloud, E2E Networks). Cloud network security is often overlooked, many organizations use default VPCs with open security groups. Implementing cloud-native firewalls and private subnets should be a top priority.

OT and ICS Network Security

Objective: Secure operational technology networks that control industrial processes.

Purdue Model Levels:

• Level 0: Physical processes (sensors, actuators)
• Level 1: Basic control (PLCs, RTUs, IEDs)
• Level 2: Supervisory control (SCADA, HMI, DCS)
• Level 3: Manufacturing operations (MES, historians, production scheduling)
• Level 4: Business planning (ERP, business systems)
• Level 5: Enterprise network (internet, cloud)

Key Controls:

1. OT-IT Segmentation: Implement an industrial firewall (data diode or unidirectional gateway) between Level 3 and Level 4. No direct connection from IT to OT.
2. Zone Segmentation: Within OT, create zones (e.g., safety systems, control systems, monitoring systems) with firewalls between them.
3. Read-Only from IT to OT: IT should only read data from OT, not write commands. Use unidirectional gateways or data diodes for data flow from OT to IT.
4. No Internet from OT: OT networks should not have internet access. If patches are needed, use a manual transfer process (staging server, USB with verification).
5. Vendor Access Control: Vendor remote access to OT should go through a secure jump box with session recording, MFA, and time-limited access.
6. Industrial IDS/IPS: Deploy OT-specific IDS (Nozomi Networks, Claroty, Dragos, CyberX) that understand ICS protocols (Modbus, DNP3, IEC 61850, OPC-UA).
7. Asset Inventory: Maintain a complete inventory of all OT assets (PLCs, RTUs, HMIs, switches) with firmware versions and configurations.
8. Patch Management: OT patching is complex and requires vendor approval. Plan maintenance windows and test patches on non-production systems first.

Indian Context: Indian manufacturing is rapidly adopting Industry 4.0 and smart factory initiatives, which increase OT-IT convergence. However, many plants still have no OT-IT segmentation. CERT-In and the Indian government have issued guidelines for ICS security. The Chennai manufacturing case (see Section 3) is a wake-up call for the sector.

Tools and Technologies

Firewalls

IDS/IPS / NDR

Network Monitoring

Wireless Security

Remote Access / VPN / ZTNA

NAC

OT/ICS Security

Policy Templates

Network Security Policy (Template)

1. PURPOSE
   To establish requirements for the secure design, implementation, operation,
   and monitoring of the organization's networks to protect information and systems.

2. SCOPE
   This policy applies to all networks, network devices, network services, and
   network connections owned or managed by the organization, including on-premise,
   cloud, and remote access networks.

3. POLICY STATEMENTS
   3.1 Networks shall be designed with defense in depth, segmentation, and least
       privilege principles.
   3.2 Firewalls shall be deployed at all network boundaries with default-deny
       policies and explicit allow rules.
   3.3 Networks shall be segmented into trust zones with controlled inter-zone
       communication.
   3.4 Wireless networks shall use WPA3-Enterprise or WPA2-Enterprise with strong
       authentication and encryption.
   3.5 Remote access shall require multi-factor authentication, encrypted tunnels,
       and client posture verification.
   3.6 Network devices shall be hardened following vendor and industry best practices.
   3.7 Networks shall be monitored continuously for anomalies, unauthorized access,
       and attacks.
   3.8 Network changes shall be documented, approved, and tested before implementation.
   3.9 Third-party network connections shall be controlled, monitored, and reviewed
       regularly.
   3.10 OT/ICS networks shall be isolated from IT networks with unidirectional or
        strictly controlled gateways.

4. ROLES AND RESPONSIBILITIES
   4.1 CISO: Owns the policy, ensures compliance, reports to management.
   4.2 Network Administrator: Designs, implements, and maintains network security
       controls.
   4.3 Security Architect: Reviews network designs for security compliance.
   4.4 Security Operations: Monitors network security events and responds to incidents.
   4.5 IT Operations: Maintains network devices, applies patches, and manages backups.

5. ENFORCEMENT
   Violations of this policy may result in disciplinary action. Network security
   incidents caused by policy violations may result in legal action.

6. REVIEW
   This policy shall be reviewed annually or after any significant network security
   incident or architecture change.

Risk Assessment

Risk Scenarios

Audit Checklist

Internal Audit Questions (20 Questions)

1. Is there a documented network security policy? (A.8.20)
2. Is there a current network topology diagram? (A.8.20)
3. Are firewalls deployed at all network boundaries with default-deny policies? (A.8.20)
4. Are firewall rules reviewed and audited quarterly? (A.8.20)
5. Is the network segmented into trust zones with controlled inter-zone communication? (A.8.20, A.8.22)
6. Are wireless networks secured with WPA3-Enterprise or WPA2-Enterprise? (A.8.20)
7. Is there a separate guest wireless network with client isolation? (A.8.20)
8. Is remote access protected with VPN and multi-factor authentication? (A.8.20)
9. Are network devices hardened (default passwords changed, unused services disabled, SSH only)? (A.8.20)
10. Are network devices patched with the latest firmware within defined SLAs? (A.8.8)
11. Is network traffic monitored for anomalies and unauthorized access? (A.8.20, A.8.16)
12. Are IDS/IPS or NDR solutions deployed on critical network segments? (A.8.20)
13. Are network configuration changes documented and approved? (A.8.20)
14. Are network device configurations backed up regularly? (A.8.13)
15. Is there an out-of-band management network for network devices? (A.8.20)
16. Are third-party network connections controlled and monitored? (A.8.20)
17. Is OT/ICS network isolated from IT network? (A.8.20, A.8.22)
18. Are network device logs sent to a centralized SIEM? (A.8.15)
19. Is network time synchronized across all devices? (A.8.17)
20. Is there a network disaster recovery plan tested annually? (A.8.14)

Evidence to Review

• Network security policy and procedure (documented, approved, dated)
• Network topology diagrams (current, accurate, including cloud and OT)
• Firewall configuration and rule sets (current, audited)
• Firewall rule review records (quarterly)
• VLAN/subnet allocation documentation
• Network segmentation test results (e.g., lateral movement testing)
• Wireless network configuration (encryption, authentication, SSID settings)
• Guest network isolation test results
• Remote access configuration (VPN, MFA, client posture checks)
• Network device hardening checklists and configurations
• Network device firmware patch records
• IDS/IPS or NDR configuration and alert logs
• Network monitoring dashboards and reports
• Network change management records
• Network device configuration backup records
• Network device syslog/SIEM integration records
• NTP configuration and synchronization status
• Third-party connection agreements and monitoring records
• OT-IT segmentation documentation and test results
• Network penetration test reports
• Network disaster recovery test results

Metrics and KPIs

Common Pitfalls and How to Avoid Them

Pitfall 1: "We Only Need a Perimeter Firewall"

Mistake: Believing that a single perimeter firewall is sufficient. Reality: 70% of attacks involve lateral movement after initial compromise. Internal firewalls and segmentation are essential. Solution: Implement defense in depth with firewalls at multiple boundaries: perimeter, internal segments, cloud boundaries, and host-based.

Pitfall 2: "Segmentation Will Break Our Applications"

Mistake: Avoiding segmentation because of fear of application disruption. Reality: Most applications work fine across segments if the right ports are opened. The security benefit is enormous. Solution: Implement segmentation in phases. Start with a VLAN for servers. Map required traffic flows before creating rules. Test thoroughly in staging.

Pitfall 3: "Our Wi-Fi Password Is Strong Enough"

Mistake: Using WPA2-PSK with a password posted on the wall. Reality: Anyone with the password can capture traffic, perform ARP spoofing, and attack internal systems. Solution: Implement WPA3-Enterprise with 802.1X and RADIUS. Separate guest networks. Use certificate-based authentication where possible.

Pitfall 4: "RDP on the Internet Is Fine With a Strong Password"

Mistake: Exposing Remote Desktop directly to the internet. Reality: RDP is one of the most attacked protocols. Brute force, credential stuffing, and BlueKeep-style vulnerabilities are constant threats. Solution: Never expose RDP or SSH to the internet. Use VPN, ZTNA, or bastion hosts. If absolutely necessary, restrict by IP and use MFA.

Pitfall 5: "We Don't Need to Monitor Internal Traffic"

Mistake: Only monitoring internet-bound traffic. Reality: Lateral movement, insider threats, and ransomware propagation happen inside the network. Solution: Deploy IDS/IPS or NDR on internal segments. Monitor east-west traffic. Use behavioral analysis to detect anomalies.

Pitfall 6: "Cloud Networks Are Secure by Default"

Mistake: Assuming cloud providers secure your network automatically. Reality: Cloud networks are secure-by-design but not secure-by-default. Default VPCs often have open security groups and public subnets. Solution: Design cloud networks with private subnets, restrictive security groups, and cloud-native firewalls. Use CSPM tools to detect misconfigurations.

Pitfall 7: "OT Networks Don't Need Security"

Mistake: Treating industrial networks as "not IT" and therefore "not security." Reality: OT networks are increasingly targeted. Stuxnet, Industroyer, and Triton all targeted OT systems. OT-IT convergence increases risk. Solution: Implement OT-IT segmentation following the Purdue model. Use industrial firewalls. Deploy OT-specific IDS. Vendor remote access must be controlled and monitored.

Pitfall 8: "We Can Patch Network Devices Later"

Mistake: Delaying network device patching because "they just route traffic." Reality: Network device vulnerabilities (Cisco ASA, Juniper, F5) are actively exploited. A compromised router or switch gives an attacker complete network control. Solution: Include network devices in the vulnerability management program. Patch within defined SLAs. Test patches in a lab environment.

Pitfall 9: "Split Tunneling Saves Bandwidth"

Mistake: Using VPN split tunneling to reduce corporate internet bandwidth usage. Reality: Split tunneling allows malware on a home network to access the corporate VPN. It also bypasses corporate security controls for internet traffic. Solution: Use full tunneling for all remote access. If split tunneling is required, implement strict endpoint security and DNS security.

Pitfall 10: "Network Diagrams Are a Waste of Time"

Mistake: Not maintaining accurate network topology diagrams. Reality: Network diagrams are essential for incident response, auditing, and architecture planning. You cannot secure what you cannot visualize. Solution: Maintain current network diagrams using automated tools (Lansweeper, Open-AudIT, cloud-native tools). Review and update diagrams quarterly.

Illustrative Scenarios

Illustrative scenario, a composite example for guidance, not a specific Singahi engagement or a verified outcome.

Illustrative Scenario 1: Indian NBFC, "From Flat Network to Fortress"

Organization: A 300-employee NBFC in Mumbai with 15 branches, providing microfinance and vehicle loans. ISO 27001 certified but with a weak network architecture.

Challenge: The NBFC had a completely flat network. All 300 workstations, 20 servers, and the core banking system were on the same VLAN with no segmentation. The perimeter firewall had a default-allow outbound policy. There was no internal firewall, no IDS, and no network monitoring. A phishing email compromised an HR workstation. The attacker used built-in Windows tools (net view, PowerShell) to discover the network. Within 4 hours, the attacker had moved laterally to the file server, domain controller, and core banking server. The attacker deployed ransomware (LockBit) across all 300 workstations and 20 servers. The ransom demand was . The NBFC had no network segmentation to contain the breach, no IDS to detect lateral movement, and no network logs to trace the attack path. RBI imposed a penalty of and restricted new customer onboarding for 6 months.

Solution: The NBFC engaged Singahi to redesign their network security:

1. Phase 1 (Architecture): Designed a segmented network with 6 VLANs: Corporate, Servers, Database, Management, Guest, and Branch VPN. Created a DMZ for internet-facing services.
2. Phase 2 (Firewalls): Deployed a next-generation firewall (Fortinet FortiGate) at the perimeter with default-deny policies. Deployed an internal firewall between the Corporate and Server VLANs. Deployed host-based firewalls on all servers.
3. Phase 3 (Segmentation): Implemented VLANs and inter-VLAN routing with ACLs. The core banking server was isolated in the Database VLAN with explicit allow rules only from the application server on port 1521 (Oracle).
4. Phase 4 (Monitoring): Deployed Suricata IDS on the internal firewall interface. Integrated firewall and IDS logs into the SIEM (Wazuh). Configured alerts for lateral movement patterns (suspicious SMB, RDP, PowerShell remoting).
5. Phase 5 (Remote Access): Replaced the basic VPN with Fortinet FortiClient VPN with MFA (Duo Security), full tunneling, and client posture checks. Implemented branch-to-head-office VPN with IPsec.
6. Phase 6 (Wireless): Replaced WPA2-PSK with WPA2-Enterprise using FortiAP + FortiAuthenticator (RADIUS). Created separate guest SSID with isolation and bandwidth limits.
7. Phase 7 (Hardening): Hardened all switches and routers (Cisco): disabled unused ports, enabled port security, enabled DHCP snooping, enabled DAI, configured management VLAN, centralized authentication with TACACS+.

Results:

• Network segments: 1 (flat) → 6 (segmented)
• Firewall rules: 15 (permissive) → 120 (explicit, least privilege)
• Internal firewall: None → Deployed with default-deny
• IDS alerts: 0 → 50+ per day (investigated by SOC)
• Lateral movement: Unrestricted → Contained to the compromised segment
• Ransomware impact: 320 systems encrypted → 1 workstation isolated (subsequent simulation test)
• RBI penalty: → Zero non-conformities in the next RBI inspection
• Network security audit: Passed with zero critical findings
• overhead: for firewalls, switches, IDS, and consulting. ROI: The breach overhead (ransom + RBI penalty + remediation + lost business). The security investment paid for itself 28x in the first year.

Quote from the CIO: "We thought our network was 'secure enough' because we had a firewall. We learned that a firewall without segmentation is like a castle with no walls inside. Singahi showed us that real network security is about layers, not just a single gate."

Illustrative Scenario 2: Large Indian Manufacturing Group, "Bridging the OT-IT Divide"

Organization: A 4,000-employee manufacturing group in Gujarat with 8 plants, producing automotive and industrial components. ISO 27001 certified for IT, but OT was out of scope.

Challenge: The group had a modern IT network with firewalls, segmentation, and monitoring. However, the OT network (SCADA, PLCs, HMIs, DCS) at each plant was connected to the IT network via a simple Layer 2 switch with no segmentation. The OT network had no firewall, no monitoring, and no hardening. PLCs and HMIs had default passwords. An engineering workstation on the IT network was compromised via phishing. The attacker used the Layer 2 connection to move into the OT network. The attacker discovered PLCs with default passwords, modified the temperature control parameters on a heat treatment furnace, and caused a temperature excursion that destroyed 5,000 components worth . The attacker also encrypted the SCADA historian with ransomware, demanding . The plant had no OT-IT segmentation, no industrial IDS, and no OT security monitoring. The incident caused 5 days of production stoppage and a supply chain disruption to a major automotive OEM.

Solution: The group engaged Singahi to secure their OT network and bridge the OT-IT gap:

1. Phase 1 (Assessment): Conducted an OT security assessment across all 8 plants. Discovered 180 PLCs with default passwords, 45 HMIs with weak passwords, 12 OT-IT direct connections with no firewall, and 23 unauthorized vendor remote access accounts.
2. Phase 2 (Segmentation): Implemented the Purdue Model segmentation at each plant:
   • Level 0–1 (PLCs, sensors): Isolated on a dedicated OT control network
   • Level 2 (SCADA, HMI): On a supervisory network with a firewall to Level 1
   • Level 3 (MES, historians): On a manufacturing operations network with a firewall to Level 2
   • Level 3.5 (Industrial DMZ): A buffer zone between OT and IT with unidirectional data diodes for data flow from OT to IT
   • Level 4–5 (IT/Enterprise): Existing IT network, no direct access to OT
3. Phase 3 (Industrial Firewall): Deployed industrial firewalls (Moxa EDR, Tofino Security) between each Purdue level. Configured strict protocol-aware rules (only Modbus TCP on port 502 from SCADA to PLCs, only OPC-UA from MES to SCADA).
4. Phase 4 (OT IDS): Deployed OT-specific IDS (Nozomi Networks Guardians) at each plant. Configured alerts for unauthorized PLC programming, unusual Modbus traffic, and HMI credential changes.
5. Phase 5 (Hardening): Changed all default PLC passwords. Implemented read-only access for SCADA operators. Disabled unused PLC network ports. Hardened HMI operating systems (Windows Embedded) with patches and endpoint protection.
6. Phase 6 (Vendor Access): Implemented vendor jump boxes in the industrial DMZ. All vendor remote access required MFA, session recording, and time-limited access (maximum 4 hours). Vendors could only access specific PLCs, not the entire OT network.
7. Phase 7 (Monitoring): Integrated OT security alerts with the IT SIEM (IBM QRadar). Created a centralized OT security dashboard for the group CISO.

Results:

• OT-IT connections: 12 direct connections → 8 unidirectional data diodes
• PLC passwords: 180 default → 180 unique, complex passwords
• OT security incidents: 3 per quarter → 0 (ongoing)
• Vendor remote access: 23 uncontrolled accounts → 8 controlled, monitored jump boxes
• Production stoppage due to security: 5 days → 0
• OEM relationship: Supply chain disruption → OEM conducted a security audit and approved the plant for continued supply
• ISO 27001 scope: Successfully expanded to include OT environments
• overhead: for OT security tools, industrial firewalls, and consulting. ROI: The production loss and recall overhead . The security investment paid for itself 12x in the first year.

Quote from the Group CISO: "We spent lakhs on IT security but treated OT as 'not our problem.' The incident proved that OT security is production safety. Singahi helped us implement Purdue Model segmentation without disrupting production, in fact, our uptime has improved because we now have better visibility into OT anomalies."

Multi-Framework Mapping

Regulatory and Industry Context

Indian Regulatory Requirements

Industry-Specific Context

Banking (RBI):

• Core banking network must be isolated from internet and corporate networks
• SWIFT infrastructure requires dedicated network segment with no external access
• UPI and payment gateway networks must be segmented with strict firewall rules
• ATM networks must be isolated and monitored for unauthorized connections
• RBI mandates annual network penetration testing by CERT-In empanelled auditors

Manufacturing (Make in India / Industry 4.0):

• OT-IT segmentation is mandatory for smart factory initiatives
• Industrial IoT (IIoT) devices must be on isolated networks with gateway security
• Robotics and CNC machines must have controlled network access
• Vendor remote access to OT must be controlled and time-limited
• Safety instrumented systems (SIS) must be air-gapped from control networks

Telecom (TRAI):

• 5G core network (5GC) security requires network slicing and segmentation
• Signaling security (SS7, Diameter, GTP) requires dedicated firewalls and monitoring
• BSS/OSS networks must be isolated from customer-facing networks
• Tower infrastructure (BTS) remote access must be secured and monitored
• IoT connectivity networks (e.g., Jio IoT) require subscriber isolation

Healthcare (NABH):

• Patient data networks must be isolated from guest Wi-Fi and administrative networks
• Medical device networks (MRI, CT, patient monitors) must be segmented
• Telemedicine platforms require secure network architecture for real-time video
• PACS networks must be isolated with DICOM-aware firewalls
• Hospital Wi-Fi must use 802.1X for staff and captive portals for patients

RACI Matrix

A = Accountable, R = Responsible, C = Consulted, I = Informed

Documentation and Evidence Requirements

Documents Required

1. Network Security Policy, Approved by management
2. Network Architecture Diagrams, Current, accurate, including all segments, cloud, and OT
3. Network Device Inventory, All routers, switches, firewalls, access points, VPN concentrators
4. Firewall Rule Documentation, Business justification for each rule, reviewed quarterly
5. VLAN/Subnet Allocation, Documentation of all segments and their purposes
6. Network Segmentation Test Results, Evidence that segmentation works (e.g., lateral movement tests)
7. Wireless Network Configuration, Encryption, authentication, SSID settings
8. Remote Access Configuration, VPN settings, MFA configuration, client posture checks
9. Network Device Hardening Checklists, Per-device hardening evidence
10. Network Change Records, All network changes with approval and testing
11. Network Monitoring Configuration, IDS/IPS rules, SIEM integration, alert thresholds
12. Network Penetration Test Reports, Annual or bi-annual testing
13. Network Vulnerability Scan Reports, Quarterly scanning of network devices
14. OT Network Segmentation Documentation, Purdue Model implementation, industrial firewall rules
15. Third-Party Connection Agreements, Security requirements for vendor/partner connections
16. Network Disaster Recovery Plan, Failover procedures, redundant links, backup connectivity
17. Network Configuration Backups, Automated backup records with restoration test results
18. Training Records, Network staff training on security policies and procedures

Evidence Retention

• Network diagrams and documentation: Retain current + all versions for 7 years
• Firewall rules and change records: Retain for 7 years
• Network logs (SIEM): Retain for 1 year (or as per regulatory requirements)
• Network penetration test reports: Retain for 3 years
• Vulnerability scan reports: Retain for 3 years
• Configuration backups: Retain daily backups for 1 year
• Incident records: Retain for 7 years
• Training records: Retain for 3 years after employee departure

Continuous Improvement

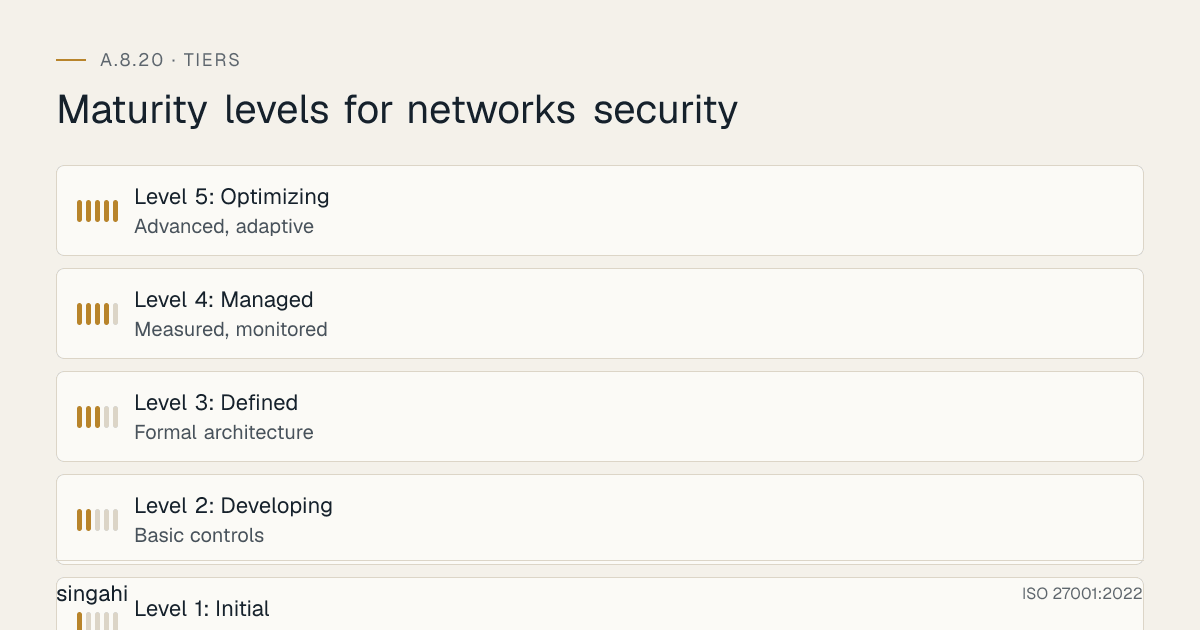

Maturity Model for A.8.20

Improvement Roadmap

• From Level 1 to 2: Create basic VLANs (servers, corporate, guest). Deploy a basic internal firewall. Implement WPA2-Enterprise. Configure basic VPN with MFA.
• From Level 2 to 3: Implement full segmentation with trust zones. Deploy IDS/IPS. Harden all network devices. Document architecture and policies. Implement NAC.
• From Level 3 to 4: Deploy NDR/NTA. Implement cloud-native security. Add OT segmentation. Implement ZTNA. Conduct regular penetration testing and red teaming.
• From Level 4 to 5: Implement AI-powered network security. Deploy SASE architecture. Full zero-trust with continuous verification. Automated threat response and containment.

FAQ

Q1: Does A.8.20 require network segmentation? A: While A.8.20 broadly covers network security, detailed segmentation guidance is in A.8.22. However, A.8.20 implicitly requires segmentation as a key network security control. Implement both controls together for maximum security.

Q2: How do we secure a flat network without major disruption? A: Implement segmentation in phases. Start with a separate VLAN for servers. Then add guest Wi-Fi isolation. Then add departmental VLANs. Use firewall rules that mirror existing traffic patterns to minimize disruption. Test in a pilot group before rolling out broadly.

Q3: What is the minimum firewall requirement for a small organization? A: At minimum: a perimeter firewall with default-deny inbound and explicit allow outbound, host-based firewalls on all servers, and a separate guest network. For cloud, use cloud-native firewalls and restrictive security groups. Open-source options like pfSense provide enterprise-grade features free.

Q4: Do we need both IDS and IPS? A: IPS is recommended for automated blocking at the perimeter. IDS is recommended for monitoring internal segments where automated blocking might disrupt operations. In practice, most modern solutions combine both (NIDS/NIPS, NDR). Deploy IPS at the perimeter and IDS/NDR internally.

Q5: How do we handle cloud network security? A: Design cloud networks with private subnets for internal resources, public subnets only for internet-facing services, and restrictive security groups. Use cloud-native firewalls (AWS Network Firewall, Azure Firewall) for centralized inspection. Implement VPC Flow Logs for monitoring. Use CSPM tools to detect misconfigurations.

Q6: Is OT-IT segmentation really necessary for small manufacturing plants? A: Yes. Even small plants with a few PLCs are at risk. The impact of a production disruption (even for one day) usually exceeds the impact of segmentation. Start with a simple industrial firewall between OT and IT. Use unidirectional data diodes or read-only gateways for data collection.

Q7: What is the difference between VPN and ZTNA? A: VPN provides network-level access, once connected, the user is on the network. ZTNA provides application-level access, users access specific applications based on identity and context, without being on the network. ZTNA is more secure and is the modern replacement for VPN.

Q8: How do we monitor encrypted network traffic? A: Deploy SSL/TLS inspection on the firewall or IDS (with appropriate privacy controls and legal compliance). Alternatively, use NDR that analyzes metadata (NetFlow, packet headers) without decrypting content. For internal traffic, consider mTLS with mutual authentication.

Q9: What is SASE and should we adopt it? A: SASE (Secure Access Service Edge) converges SD-WAN with cloud-delivered security (firewall, CASB, ZTNA, SWG). It is ideal for organizations with distributed workforces and cloud workloads. For cloud-first Indian organizations, SASE can replace traditional VPNs and on-premise security appliances.

Q10: How do we measure network security effectiveness? A: Key metrics: time to detect lateral movement, time to contain a breach, network segmentation coverage, firewall rule review compliance, patch compliance for network devices, network penetration test findings, and mean time to respond to network incidents.

The following toolkit assets are available for this control:

References

1. ISO/IEC 27001:2022, Information security, cybersecurity and privacy protection, Information Security Management Systems, Requirements
2. ISO/IEC 27002:2022, Information security, cybersecurity and privacy protection, Information security controls
3. NIST Cybersecurity Framework 2.0, Identify, Protect, Detect, Respond, Recover, Govern
4. CIS Controls v8, Control 12: Network Infrastructure Management
5. PCI DSS v4.0, Requirements 1.x and 2.x
6. RBI Cyber Security Framework, Network security requirements for banking
7. CERT-In Guidelines, Network security for critical infrastructure
8. NIST SP 800-82 Rev 3, Guide to Operational Technology (OT) Security
9. Purdue Model for Industrial Control System Security, ANSI/ISA-99 / IEC 62443
10. CIS Benchmarks for Network Devices, Cisco, Juniper, Fortinet, etc.
11. NIST SP 800-125, Guide to Security for Full Virtualization Technologies
12. NIST SP 800-207, Zero Trust Architecture
13. CISA Network Security Guidance, Best practices for network security

This guide is part of the Singahi ISO 27001:2022 Annex A Control Guide Series.

Contact: security@singahi.com | singahi.com
